Description:

• Quick-change blades
• SafeCut: Individually protected discs
• SmartCut: Stripeless cuts from optimum blade overlaps
• DuoGrip: The centre-of-gravity suspension system with dual grip control
• Optimum ground pressure control by means of responsive and adjustable springs
• Available conditioner versions: CV conditioner with V-type steel tines, CR conditioner with rubber rollers or M-Rolls
• Compact in transport as the mower tilts to the middle of the tractor – for optimum weight distribution and visibility

Technical data

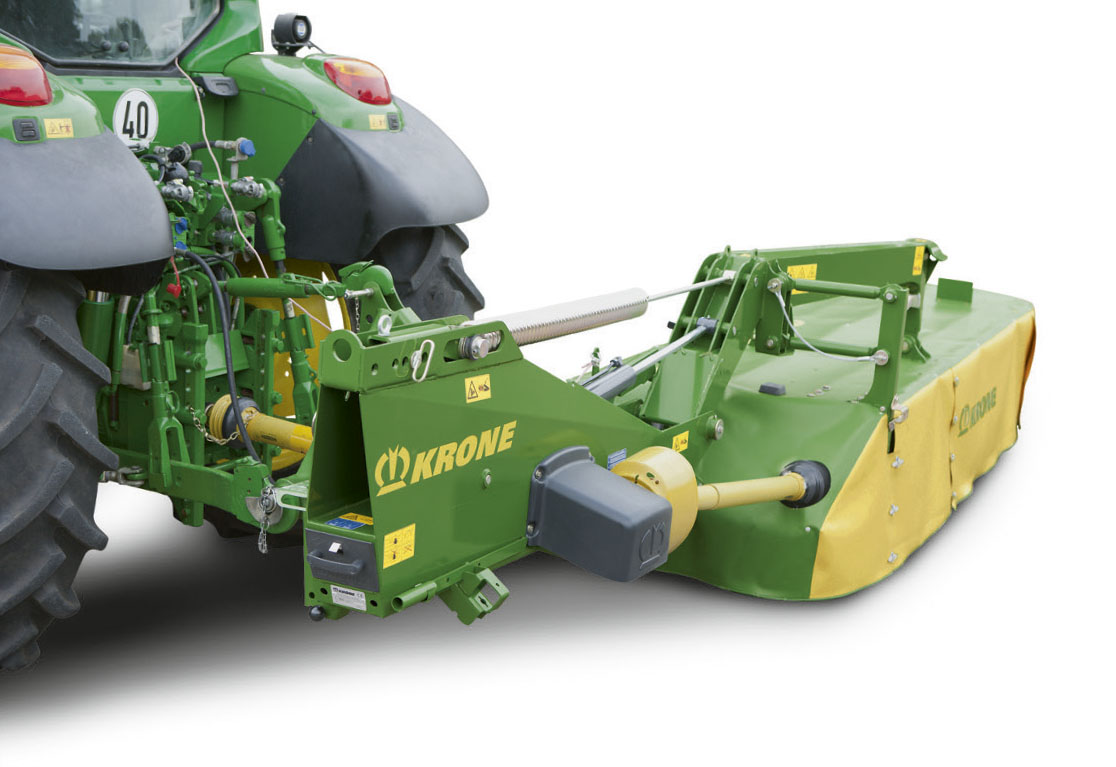

Rear-mounted disc mowers for the three-point linkage, without conditioner

Work width 2,830 mm
Transport height incl. 200 mm ground clearance: approx. 3,700 mm without folding guard variant 1900; approx. 3,400 mm
with folding guard variant 1900
Number of mowing discs 5, number of mowing drums 2
Power requirement approx. 40 kW (55 HP), depending on harvesting conditions!
Gross weight approx. 605 kg
Required hydr. connections: 1 x SA
Adjustable lower link pins Cat. I + II
