Model |
ELP2604 |
ELP2804 |
ELP3004 |
ELZ2804 |
ELZ3004 |
Engine type | Air-cooled 6-cylinder turbocharged diesel engine | ||||
Rated engine HP (kW) | 191.5 (260) | 205 (279) | 220.6 (300) | 205 (279) | 220.6 (300) |
Engine speed (rpm) | 2200 | ||||
Clutch | Single-action | Torsional shock absorbers | |||
Gears | 16F+16R | 40F+40R | |||
Gear shift mode | Mechanical | Power shift | |||
Speed range (km/h) | 3.19-38.9 | 0.3-36.8 | |||
Brake | Wet, disc | ||||

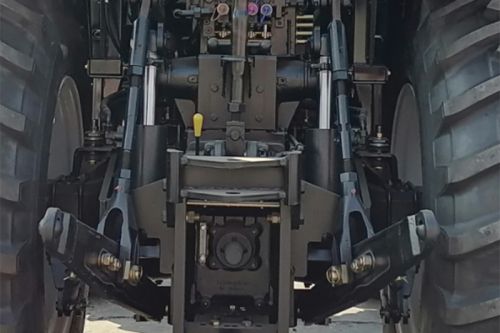

Rear PTO (rpm) | 540/1000 | ||||
Lift capacity (pivot point) (kN) | ≥75 | ||||
Hydraulic multiplier (set) | 4 | ||||
Dimensions (L*W*H) (mm) | 5730*2890*3500 | 5935*2760*3350 | |||
Wheel base (mm) | 3104 | 3120 | |||
Ground clearance (mm) | 460 | 495 | |||
Wheel track (F/R) (mm) | 1591-2235/1849-2165 | 2050-2250/2050-2300 | |||
Min. turning radius (m) | 8±0.3 | 10±0.3 | |||
Tyre (F/R) | 600/70R30; 710/70R42 |
