Key Features

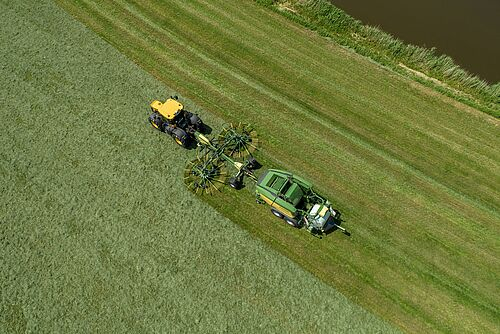

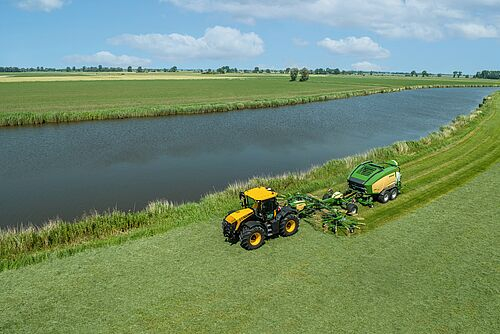

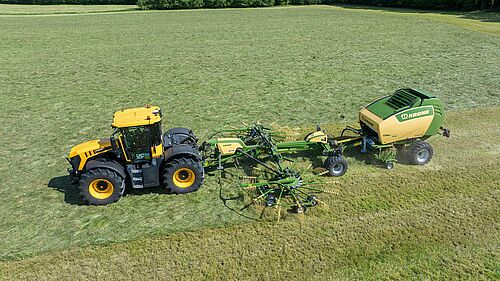

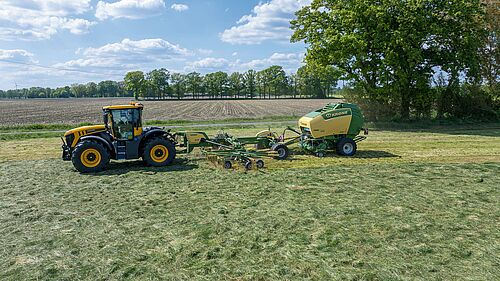

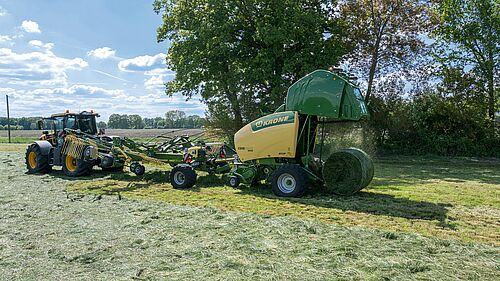

• Two-in-One Operation: Cuts two steps—raking and baling—into a single pass, saving valuable time and fuel.

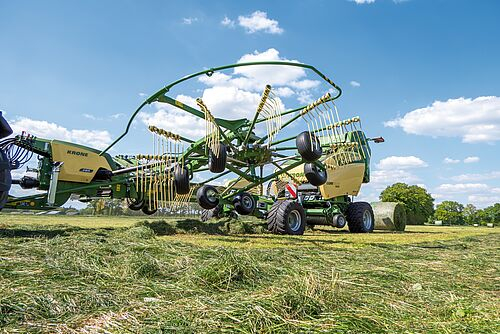

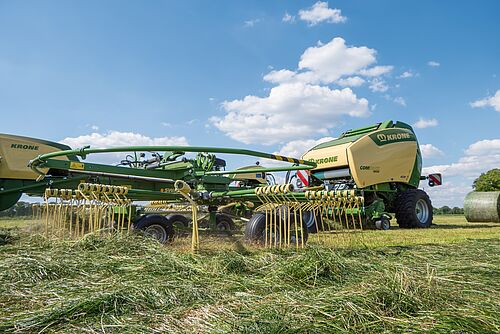

• Direct Baler Connection: Attaches directly to Krone round balers via a K-80 ball-head hitch, with complete PTO drive capability.

• Mechanical Drive with Split Gearbox: Powers both rake rotors and the baler, with an adjustable drive allowing varying rotor speeds or complete decoupling of the rotors for pure baling mode.

• Guided Steering System: Features a mechanical forced-steering linkage (via K-50 coupling) for tight maneuverability, with override capability via ISOBUS control when needed.

• Hydraulic Compatibility: Equipped with dual (and optional additional) hydraulic connections to power baler functions like pick-up and tailgate directly through the rake frame.

• ISOBUS-Controlled Operation: Offers adjustable machine functions and high compatibility even with non-ISOBUS balers, for smooth integration and control.

• Transport-Friendly Design: Engineered to comply with road-legal dimensions and lengths, with stable K-80 hitch for steady towing, even at higher speeds.

Benefits for Farmers

• Highly Efficient Harvesting: Combines swathing and baling into one step—maximizing operational efficiency and productivity.

• Time & Fuel Savings: Reduces passes across the field, cutting fuel costs and tractor wear.

• Enhanced Flexibility: Autonomous operation allows easy adjustment to various field and baler setups.

• Easy Maneuvering: Mechanical and hydraulic steering make navigation in tight entrances or headlands a breeze.

• Complete Control from One Station: All functions—rake and baler—can be managed from the Swadro’s operator interface.

• Reliable and Durable: Combines welded durability with streamlined mechanics that reduce downtime and maintenance.

• Tailored for Efficiency-Oriented Farms: Perfect for operations focused on streamlined workflows, contractor schedules, and high throughput.




  Model	Type	Attachment	Working width (m)	Working width (m) in double-swath mode	Swath width (m)	Rotor diameter (m)	No. of tine arms per rotor	Input power (kW / hp)
  Swadro S 380	Single rotor rake	Three-point attachment	3.80	–	0.60 – 1.30	2.96	10	22 / 31
  Swadro S 420	Single rotor rake	Three-point attachment	4.20	–	0.80 – 1.50	3.30	13	37 / 50
  Swadro S 460	Single rotor rake	Three-point attachment	4.60	–	0.80 – 1.80	3.60	13	37 / 50
  Swadro 38 T	Single rotor rake	Drawbar	3.80	–	0.60 – 1.30	2.96	10	19 / 25
  Swadro 42 T	Single rotor rake	Drawbar	4.20	–	0.80 – 1.50	3.30	13	22 / 31
  Swadro S 460 DB	Single rotor rake	Drawbar	4.60	–	0.80 – 1.80	3.60	13	22 / 31
  Swadro 710/26 T	Twin rotor side delivery rake	Drawbar	6.20	2 × 3.40	0.80 – 1.40	2.00	2 × 13	37 / 50
  Swadro TS 970	Three-rotor rake	Drawbar	9.70	–	1.00 – 1.80	2.00	3 × 13	59 / 80
